Wheelset Hubsmith Lab Cupid C12

KEY FEATURES

• Brushed black carbon pattern finish
• Strengthened U-Frame structure
  Tested and passed over 1000 kg load
• Aerodynamically designed flat steel spokes
• Aviation oil lubrication system to reduce rolling resistance
• Exclusive drilling angles for hub and spoke holes
  (Reduces spoke bending during wheel building)
• Built-in one-way gap adjustment ring
  Allows zero bearing clearance adjustment

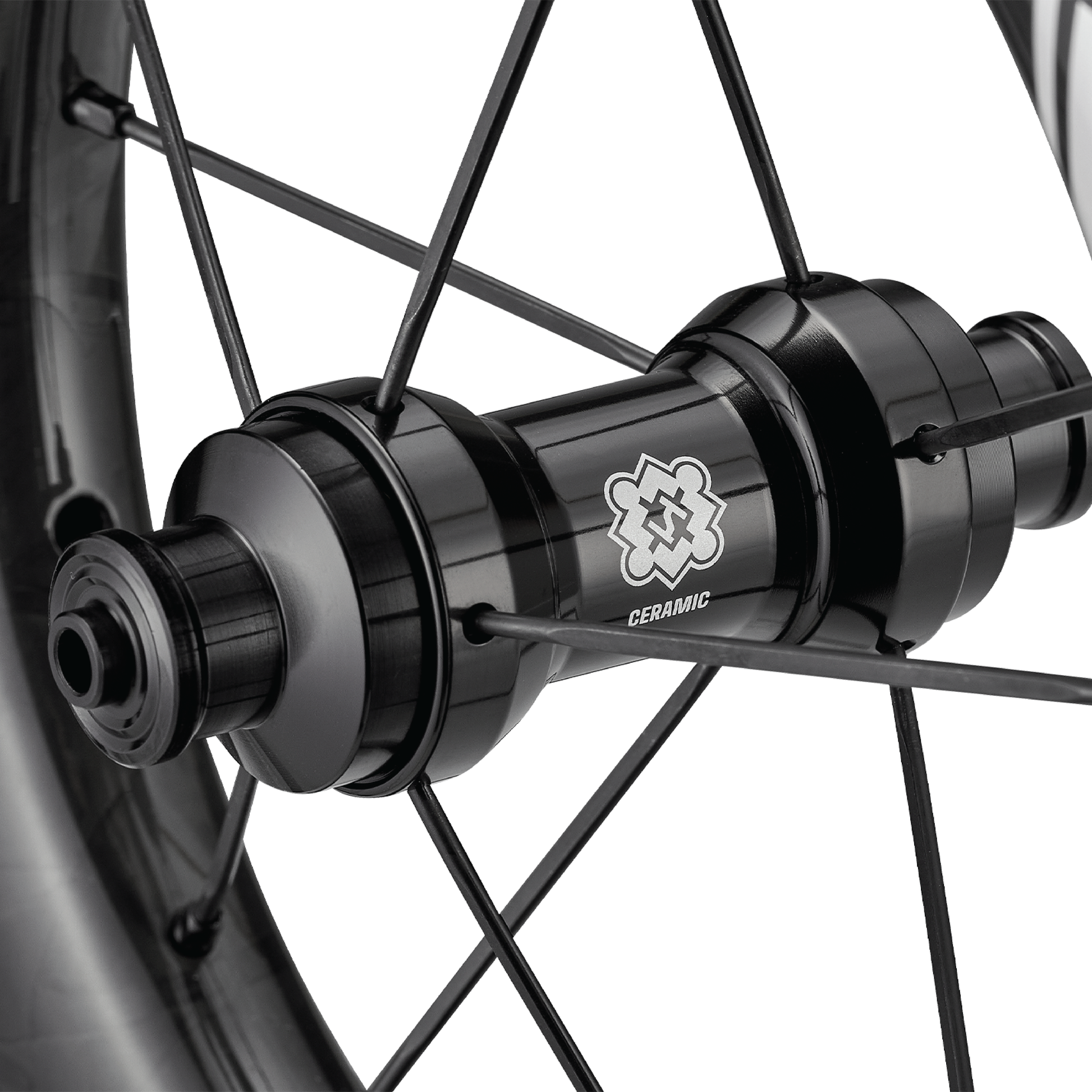

• Lightweight hub body design
• High-precision, smooth, and wear-resistant ceramic bearings
• Titanium flash filmless label style
• Hand-built by professional wheel-building technicians

SPECIFICATIONS

Wheel Size
12"

Rim Material
Carbon Rim

Rim Depth
25 mm

Inner Width
23.6 mm

Outer Width
27.4 mm

O.L.D
Ø5 mm × 95 mm
(Includes 85 mm / 90 mm replaceable caps)

Spoke Count
10H / 10H

Maximum Tire Pressure
60 psi

Bearings
Ceramic Bearings
(Aviation oil lubrication to reduce rolling resistance)

Weight
230 ±10 g / pc
(Excluding skewers & rim tape)

Quantity
1 Pair
